5.5KW/11KW Complete Off Grid Solar System Stand Alone Battery System.
Max Parallel to 49.5KW Solar System.
Quick installation and wide operation temperature range.
Mobile APP Motoring.
Lead Acid/Lithium Battery Compatible Generator can be connected.
Features:
1. Supporting 24V Lithium Battery
2. Pure sine wave solar inverter
3. Output power factor 1
4. High PV input voltage range
5. Battery equalization function to optimize battery performance and
6. extend lifecycle Inverter running without battery
7. Built-in MPPT solar controller
8. WiFi/GPRS remote monitoring RS485 communication for BMS(Optional)
9. Detachable LCD(Optional)
Application Area:
Office and public facilities, household system, networktransmission equipment, manufacturing, control system,solar energy system, oil field, drilling field operation, etc. Provide stable, reliable and safe solutions for families, islands.ships and other small photovoltaic power systems
Technical Parameter
| Future Techc 5.5KW 11KW Off Grid Solar System Configuration |
| Model | FT5.5KW-OFF | FT11KW-OFF |
| Solar Panel 415w | 14 pcs | 28pcs |
| Combiner Box | 2 inputs 2output | 2input 2output |
| Charge Controller | 48v 80A | 48v 100A |
| Battery | Customized (Gel/Lithium Battery Optional) |
| Off-grid Inverter | 5.5Kva | 2*5.5Kva |
| Mounting Support | Roof/Ground Design |

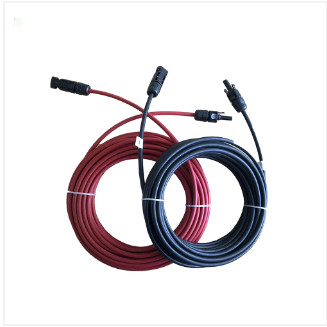

| Cable | 100m | 200m |
| Connector | 5 pairs | 20 pairs |
| Tools Bag | Wire Cable Cutter & Stripper, Crimping Pliers for PV Connectors (Opt) |
| Kindly Reminder: The Above System Configuration For Initial Designing, The System Configuration Are Subject to Changing Depends onYour Final Installation Conditions and Requirements. |
